Product Introduction

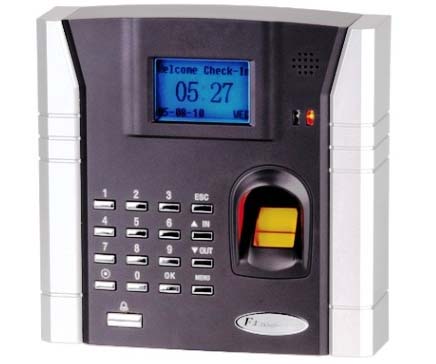

    A4( F4) is standard fingerprint Access Control and T&A product recommended newly by CJ. The robust design and highly reliable performance are results of many years of research efforts and extensive testing. The network-enabled fingerprint scanner can be used for door access control and as a fingerprint scanner module for attendance management system (AMS) and other software applications. It is suitable for Office/ Building / Factory / Hotel / Hospital/ Bank / Defense.

Benefits

· Control in someone time zone. Group Access Control
· Access Control and Attendance may be managed
· Integrated single door controller, install very easy
· From take of advanced cordless door bell, three kinds of music choice
· There are red and green instruction light on the panel, elegant vogue
· Support dismantle machine with warning
· Adopt the standard access control iron frame to install
· Network management software, can administer many software
· Permit concurrently the ZK software management software
·  Eligibility of cordless modem
· Eligibility USB flash disk to download
· Wiegand 26 standard output ,can permit concurrently other kinds of access
· Adopts super-speed calculate algorithm of 2002 version 5.06

 Technical Specification

· User capacity：1500
· Transaction： 50000
· Verification mode： 1:1 or 1: N
· Access Control： simole access control (with C1 controller)
·  Electrocontrol： Directness relay output 3A/12VDC
· Communication： RS232，RS485，TCP/IP
· Keypad Or Display： LCD with 80 character and figure keypad, wireless doorbell
· Power： 9-24V DC，stay current：0.50 mA，work current：400 mA
· Validating Speed： ＜=2 s
· FRR：＜=1%
· FAR： ＜=0.0001%
· Baud rate： RS232：115200 RS485：115200 TCP/IP(RJ45 interface)
·  Sensor： ZK sensor
·  Standard： wireless doorbell
·  Optional： short message, workcode
· Operating Temperature： 0°C - 45°C
· Operating Humidity： 20%-80%
· Authentication： CE，FCC，MA
· Management software： Transaction fingerprint manage ment and Access control attendance options and network manage ment
· Language： English, Simplified chinese, Traditional chinese, other Languages
· Size： 150（L）*145（W）*38.5（H）mm
